kyTEM

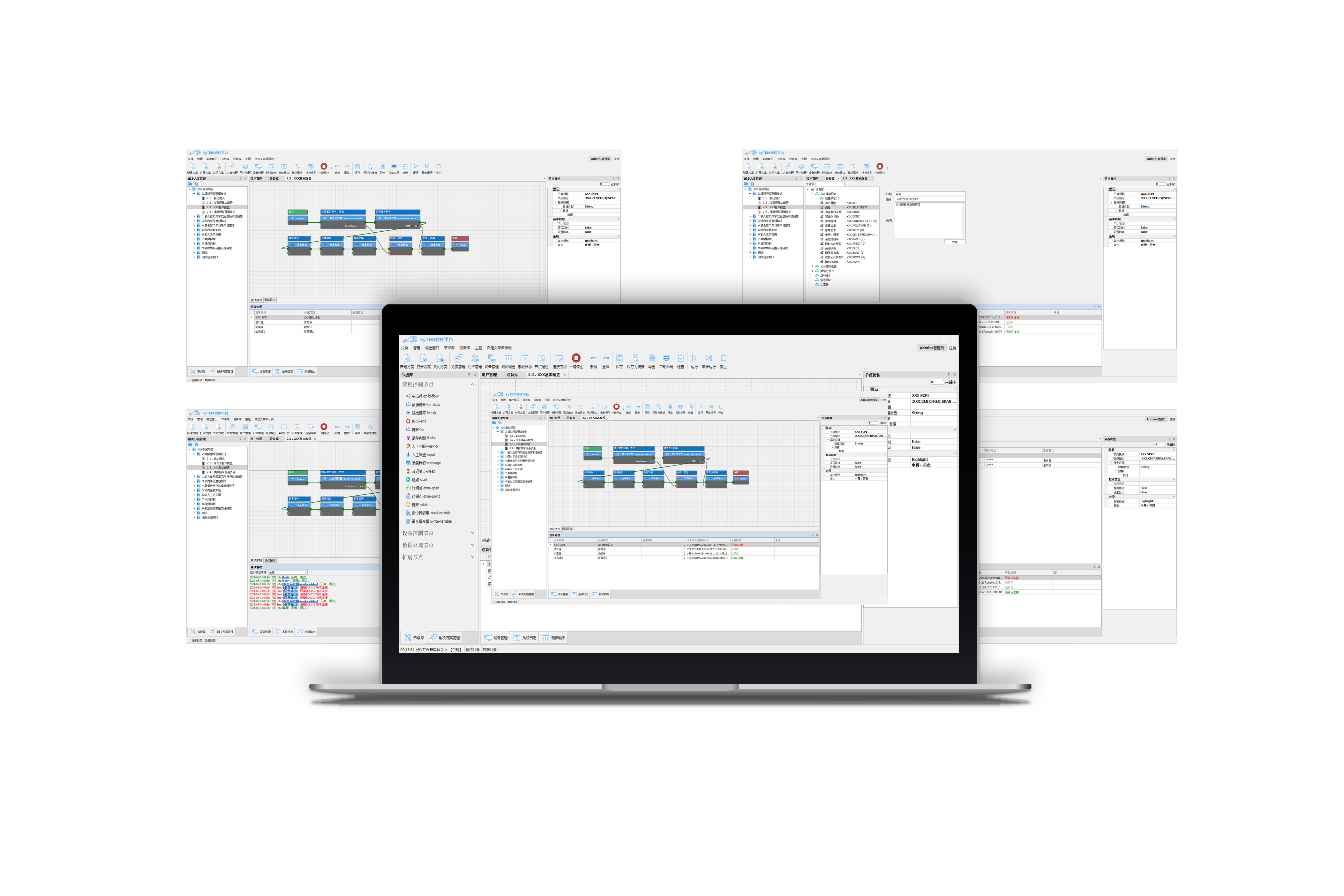

kyTEM (Testing Exploration and Management Platform) is the comprehensive test and management platform software developed by Jinyan Technology, the platform software is based on the solution (.slt) and graphical programming mode, presented in the form of an integrated development environment (IDE). It can be widely used in automatic / semiautomatic test and measurement, physical / semi-physical simulation, test scheme construction and verification applications.

kyTEM Has good scalability, ease of use and flexibility, enables the user to quickly and accurately build personalized solutions, such as: automation test scheme, distributed system test scheme, etc., support test results automatically generated, can make the test hours reduced by 80%, test efficiency increase several times, effectively implement authors efficiency.

MAJOR FUNCTION

· Solution-based visual programming

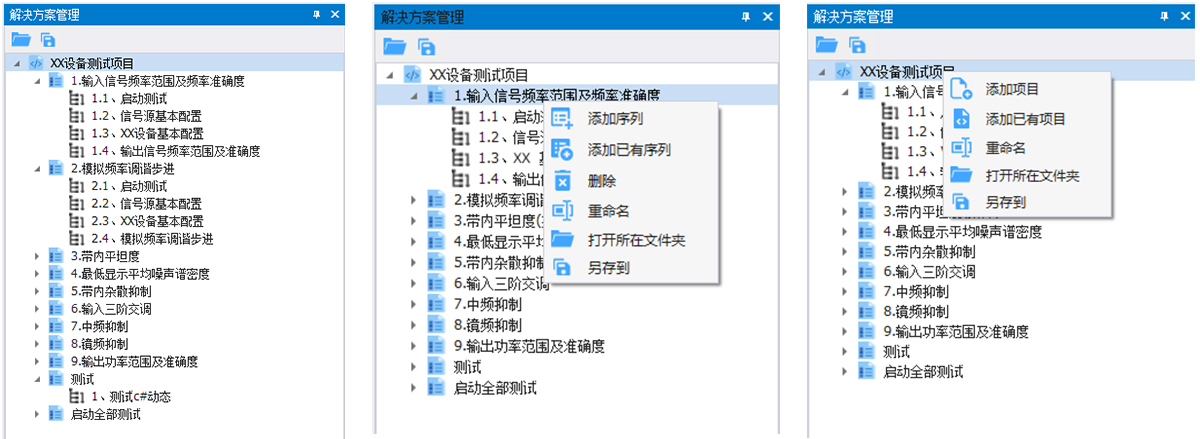

The solution is the overall measurement and control task, which consists of measurement and control project, measurement and control sequence and node library. This top-down hierarchy can help users effectively develop and manage software programs.

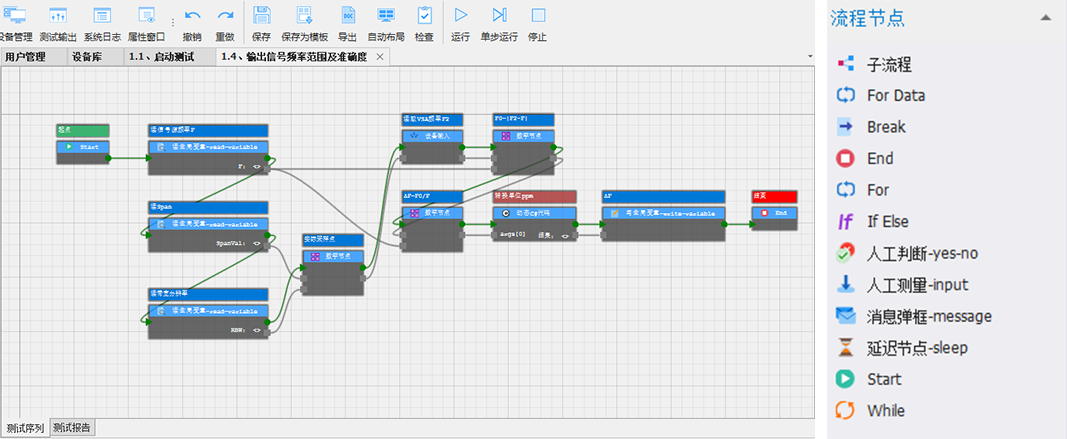

Using graphical node programming, users can program them by connecting the graphical nodes together. This way of visual programming enables the structure and function of the program is easier to understand and debug.

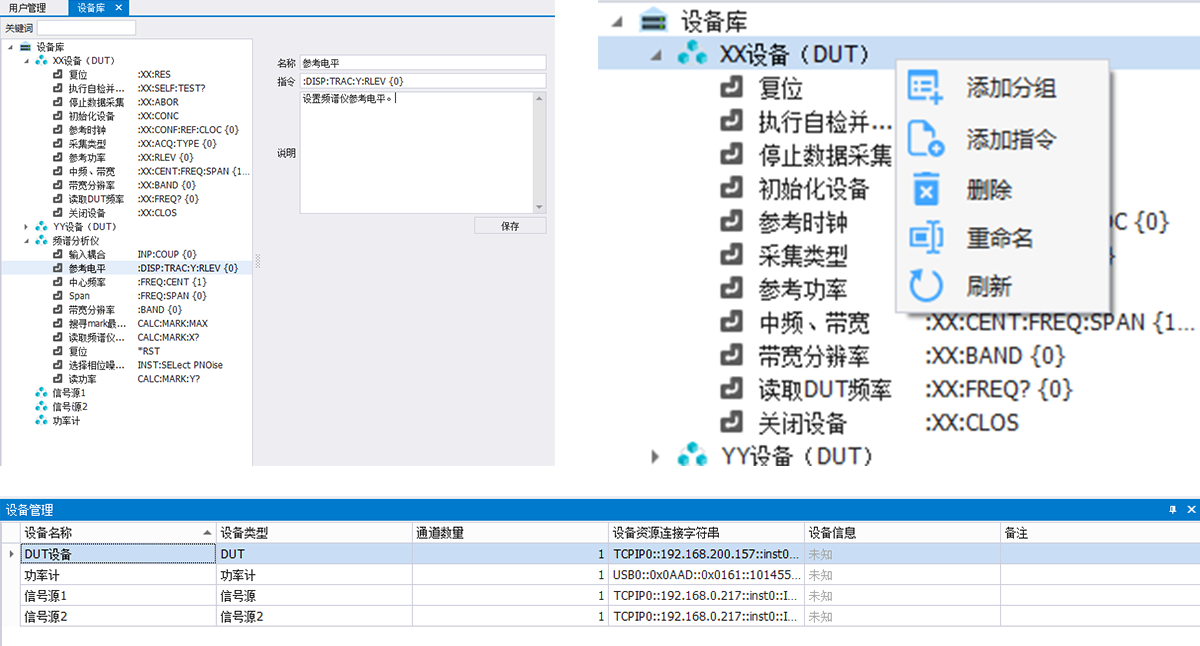

· Communication with the hardware device

It supports communication with various hardware devices, integrates all functions of communication with hardware (instrument / module, etc.) that meet GPIB, Ethernet, USB and serial port protocols, and all the control instructions of controlled hardware are packaged into standard SCPI instructions, which is particularly convenient for non-standard controlled hardware.

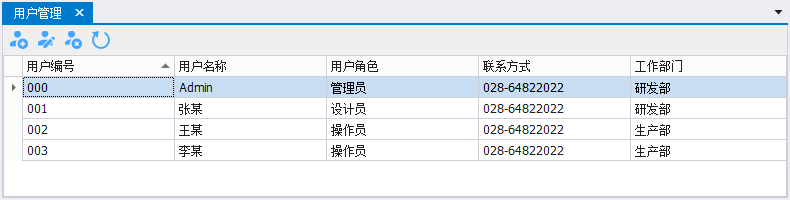

· User management

Support user account creation, modification and delete; support user permission setting and allocation to facilitate the solution (.slt) for planning and management.

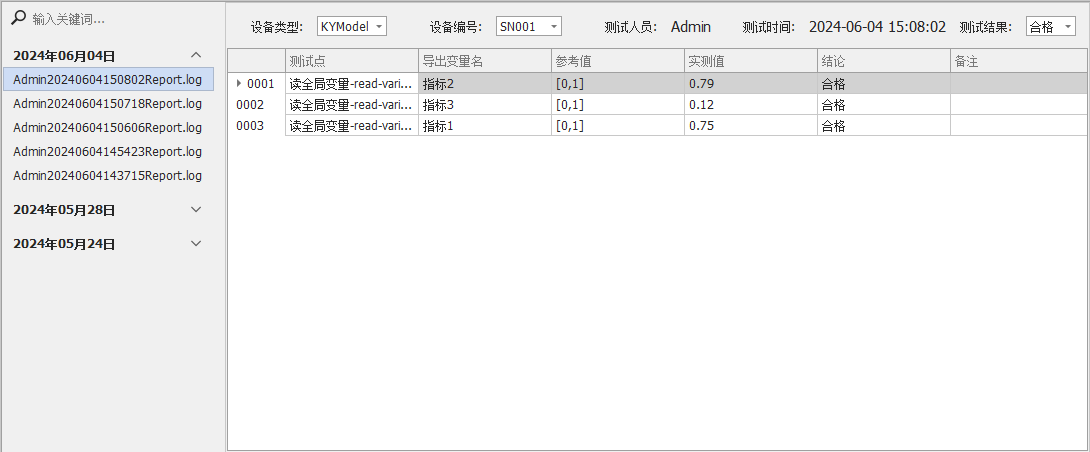

· Data analysis and visualization

A wealth of data processing, analysis and visualization tools that users can use to process, analyze, and display collected data.

The kyTEM 2.0 version not only supports the conventional "addition, subtraction, multiplication, division"operation, but also supports the loading of dynamic C # code to customize the data processing;

Version kyTEM 3.0 further supports waveform analysis, spectrum analysis, curve fitting and other functions.

· Other functions

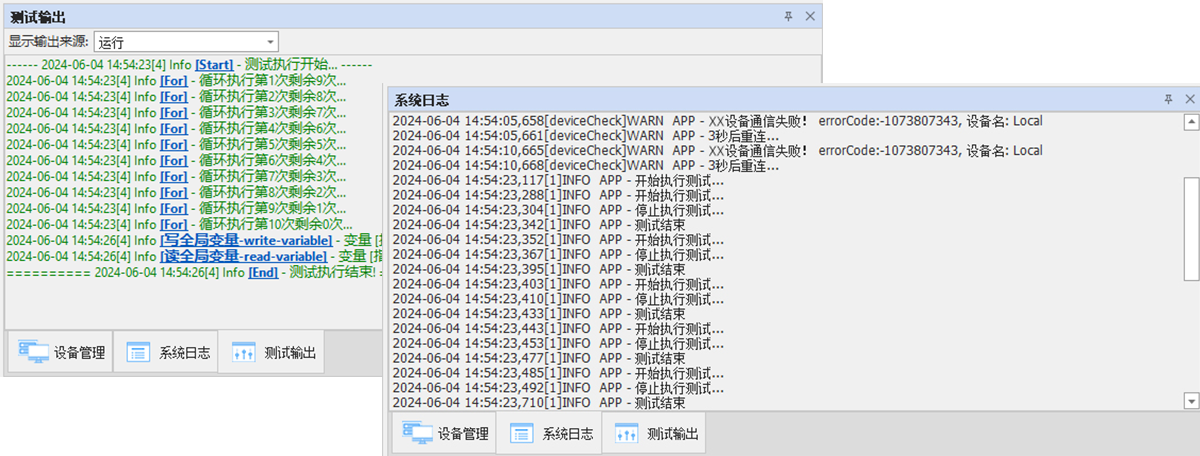

Support running status monitoring, system log display and other functions.

INSTALLATION REQUIREMENTS

Software installation

The software is installed by a one-click wizard with simple steps. According to the prompts of the installation wizard, the software deployment can be quickly completed according to the default settings. During the process, detailed prompts, installation progress bar and completion prompts are provided etc., with no user configuration for installation 0parameters and environment variables.

Hardware requirements

Processor: Intel i5 processor and above

Memory: 8GB and above

Hard disk: 256GB and above

Interfaces: USBx 2, VGA, etc

Software requirements

System: Windows 7 / Windows 10
Frame:. Net 4.7.2 and above
Components: NI-VISA 20.0 and above

Software running

The software is bound to dongle information for authorization, using offline authorization, can be activated without networking, the software can only run normally on the computer inserted in the authorized dongle, dongle covers authorization period, authorization functions and other information, please keep properly. If authorized, the dog is damaged, Kinyea Technologies will recycle the damaged dongles, and charge after the cost to provide again.

TYPICAL APPLICATIONS

Production testing
Distributed testing
automated testing
Integrated system software development and analysis
