KRC-WT001 Compact High Speed Data Recorder
The KRC-WT001 compact high speed data recorder adopts a standardized modular design, featuring high integration, excellent performance, and flexible applications. It supports reconfigurable modular configurations for PXIe. The KRC-WT001 consists of a broadband high-speed digitizer and a large capacity storage module. It supports lossless real-time streaming disk with a maximum signal up to 1.2GHz. The ADC supports 14bit resolution and 2.5GSps sampling rate, enabling full bandwidth direct acquisition of communication link receiving end signals in a compact volume, and realizing high-speed stream disk and large capacity storage of collected signals. It can be widely used in the testing of various complete equipment, systems, components, and devices.
PRODUCT FEATURES
- ADC supports 14bit resolution and 2.5GSps sampling rate;
- Maximum storage capacity up to 32TB;
- Lossless real-time streaming disk with maximum signal up to 1.2GHz;
- Both live and recorded modes have signal analysis functions such as spectrum display and waterfall plot display;
- Support manual and scheduled streaming, playback control;
- PXIe modular SSD disk, easy to install and disassemble, protecting data security;
- Support adding KDC series down converter for RF frequency expansion.

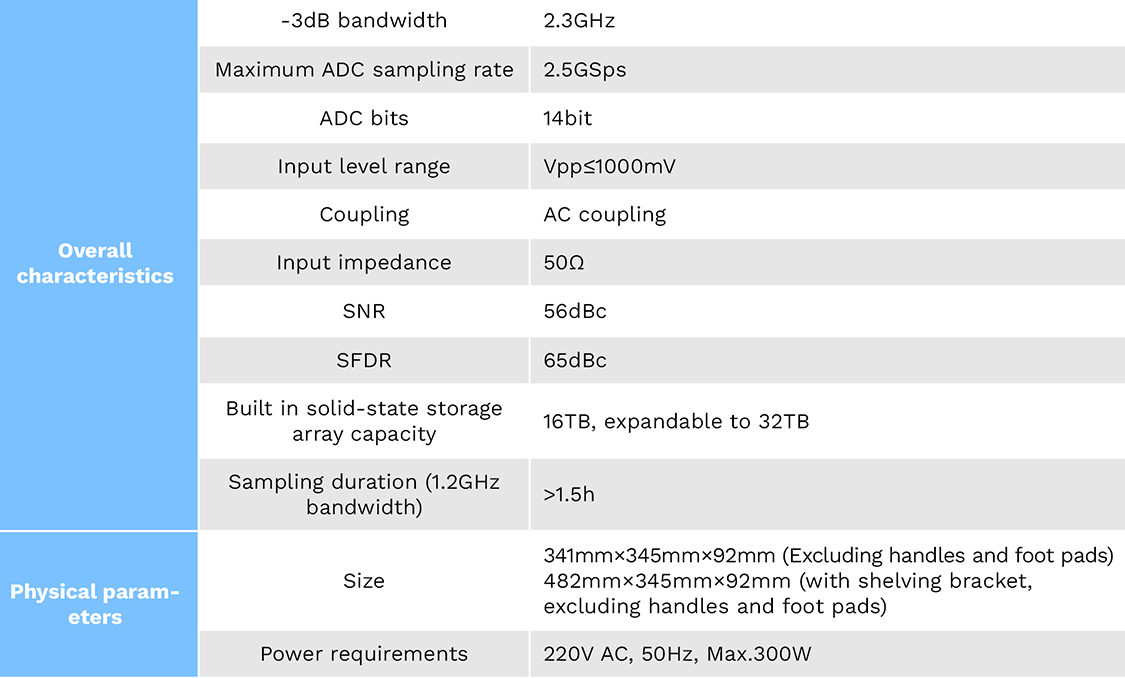

TECHNICAL INDEX

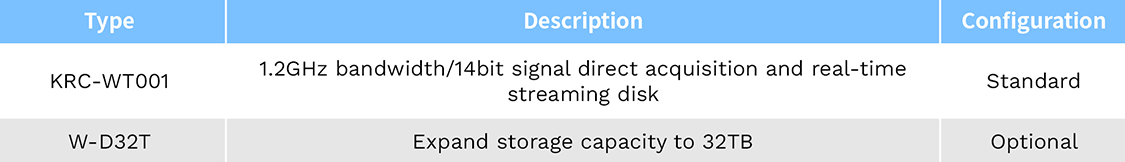

ORDERING INFORMATION
