PRODUCT FEATURES

• Input frequency range covers from <20MHz to 8GHz>, with a maximum instantaneous bandwidth of <40MHz>;
• Capable of scanning at a speed of 20GHz/s when RBW is set to 25kHz;
• Features excellent small signal monitoring capabilities, with a Displayed Average Noise Level (DANL) of ≤-165dBm/Hz;
• Equipped with a wealth of general spectrum display and analysis functions, including spectrum display, waterfall display, envelope display, histogram display, phosphor display, and fluorescent display;
• Includes panoramic scanning capabilities for high-speed full-bandwidth scanning, facilitating quick setup and signal discovery. Supports full-bandwidth spectrum display, as well as various other display modes such as waterfall, envelope, histogram, phosphor, and fluorescent;
• Offers band scanning functionality, allowing users to set channel bandwidth and frequency step arbitrarily, for targeted viewing of specific spectrum areas of interest;
• Incorporates frequency table scanning, enabling customizable scanning parameters for up to 8 spectrum windows simultaneously, facilitating fast parallel monitoring of multiple areas of interest within the spectrum;
• Provides trigger input, trigger output, frequency fine-tuning, and equipment temperature monitoring functions;
• Supports external reference clock input, reference clock output, and signal IQ data export capabilities;
• Implements ITU-T spectrum monitoring and measurement functionalities;
• Optionally supports demodulation and analysis of analog and digital signals;
• Optionally includes FM radio measurement and audio output capabilities;
• Optionally features signal recognition functions;
• Offers remote control functionality via SCPI commands, compliant with the LXI bus protocol specification.

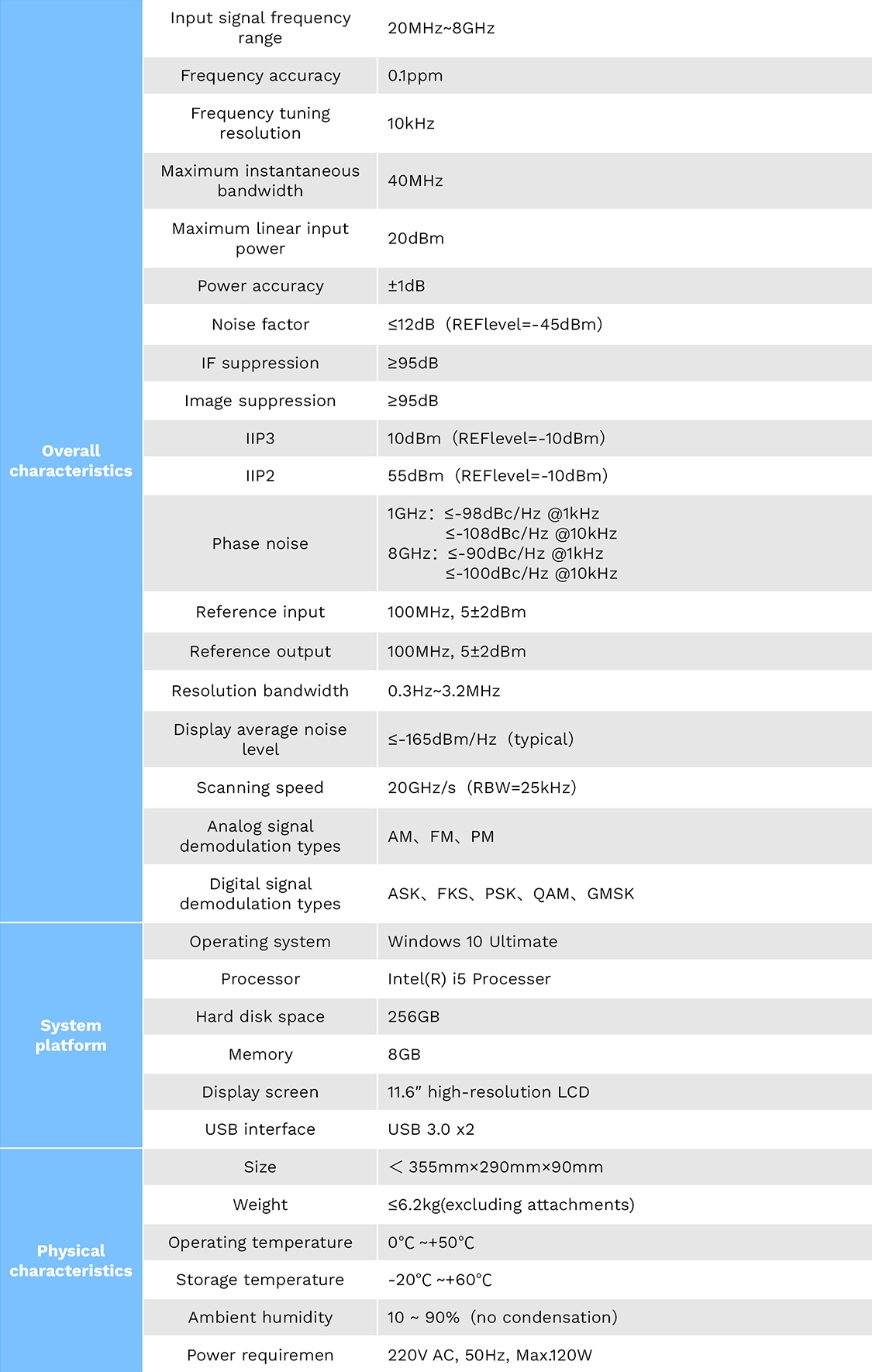

  TECHNICAL INDEX

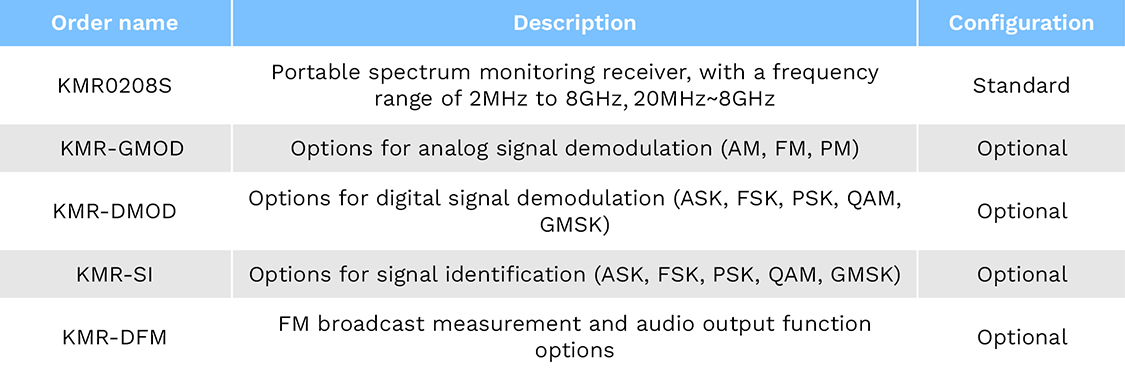

  ORDERING INFORMATION
