KDC series PXIe wideband down converter
The KDC series PXle downconverter adopts a standardized modular design, achieving radio frequency conversion processing within the frequency range of 100kHz to 43.5GHz on a compact slot structure, with a maximum signal conversion bandwidth of up to 1GHz. It boasts high integration, excellent performance, and flexible applications. It supports modular reconfigurable configurations for the PXle system and can be widely applied in the development and testing of various types of complete equipment, systems, and components.
PRODUCT FEATURES
- Each model has an instantaneous bandwidth of<1GHz>;
- Each model is a standard PXIE 3U single width size;
- Three models can be flexibly adapted, with a widest range of adaptation up to 100kHz~43.5GHz;
- The API driver program complies with the IVI interface specification, supports development environments such as C/C++, C #, LabView, and supports non physical simulation;
- By cooperating with mature acquisition modules in the market, a broadband RF signal receiving system can be quickly constructed.

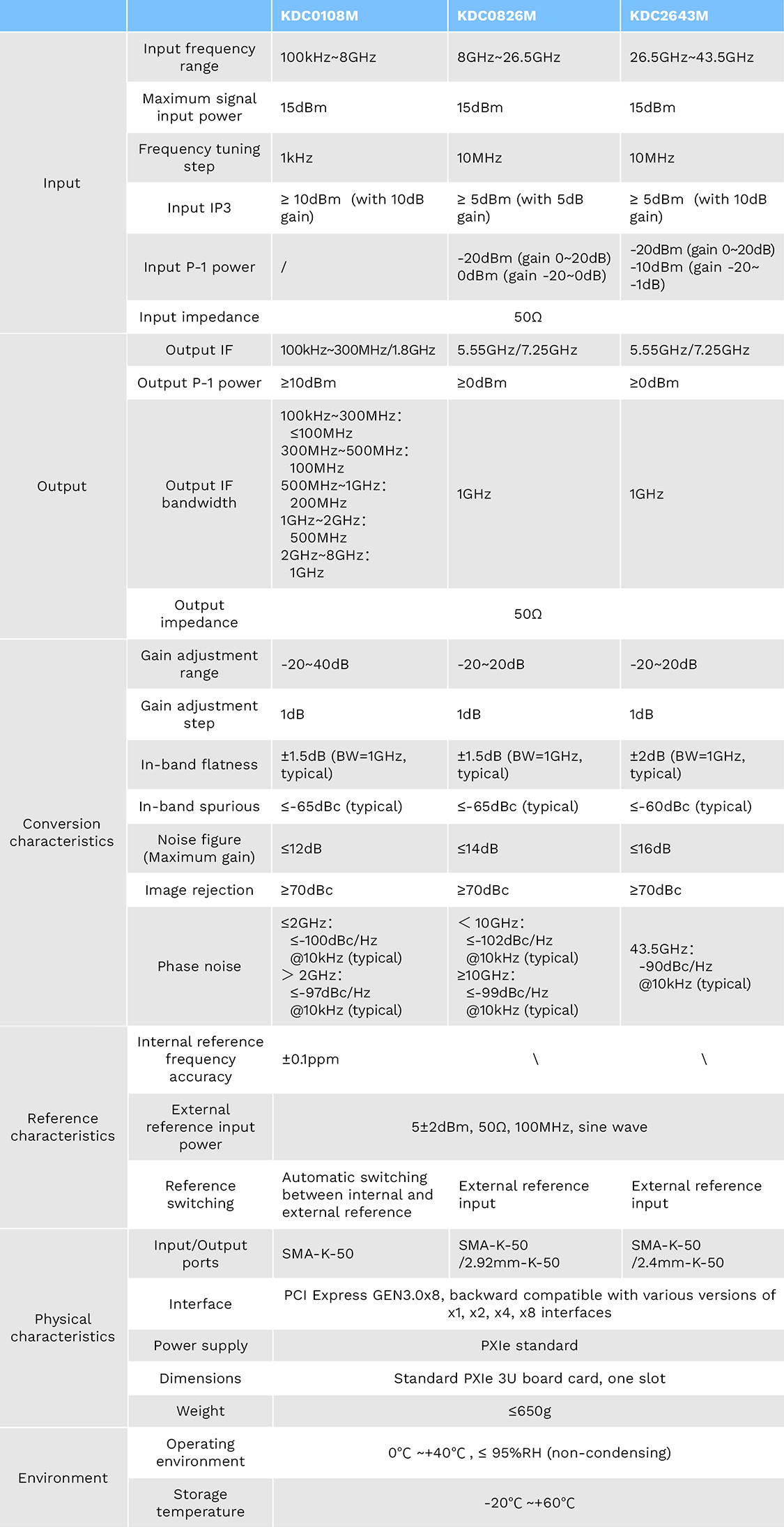

TECHNICAL INDEX

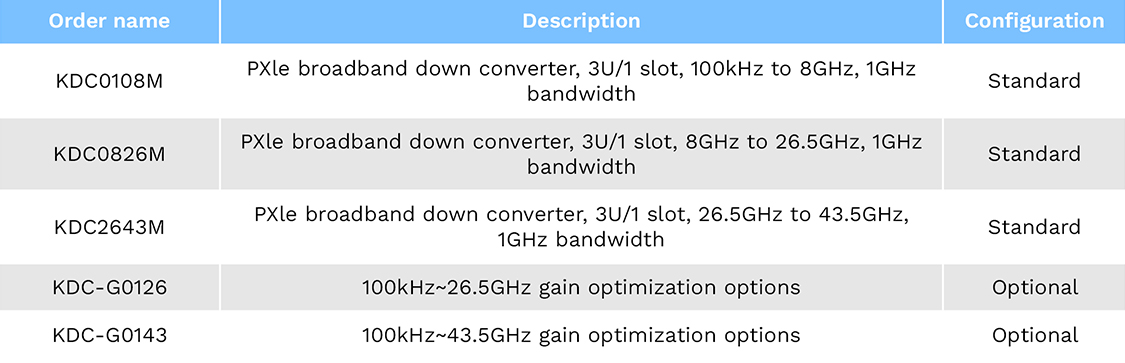

ORDERING INFORMATION
